Description

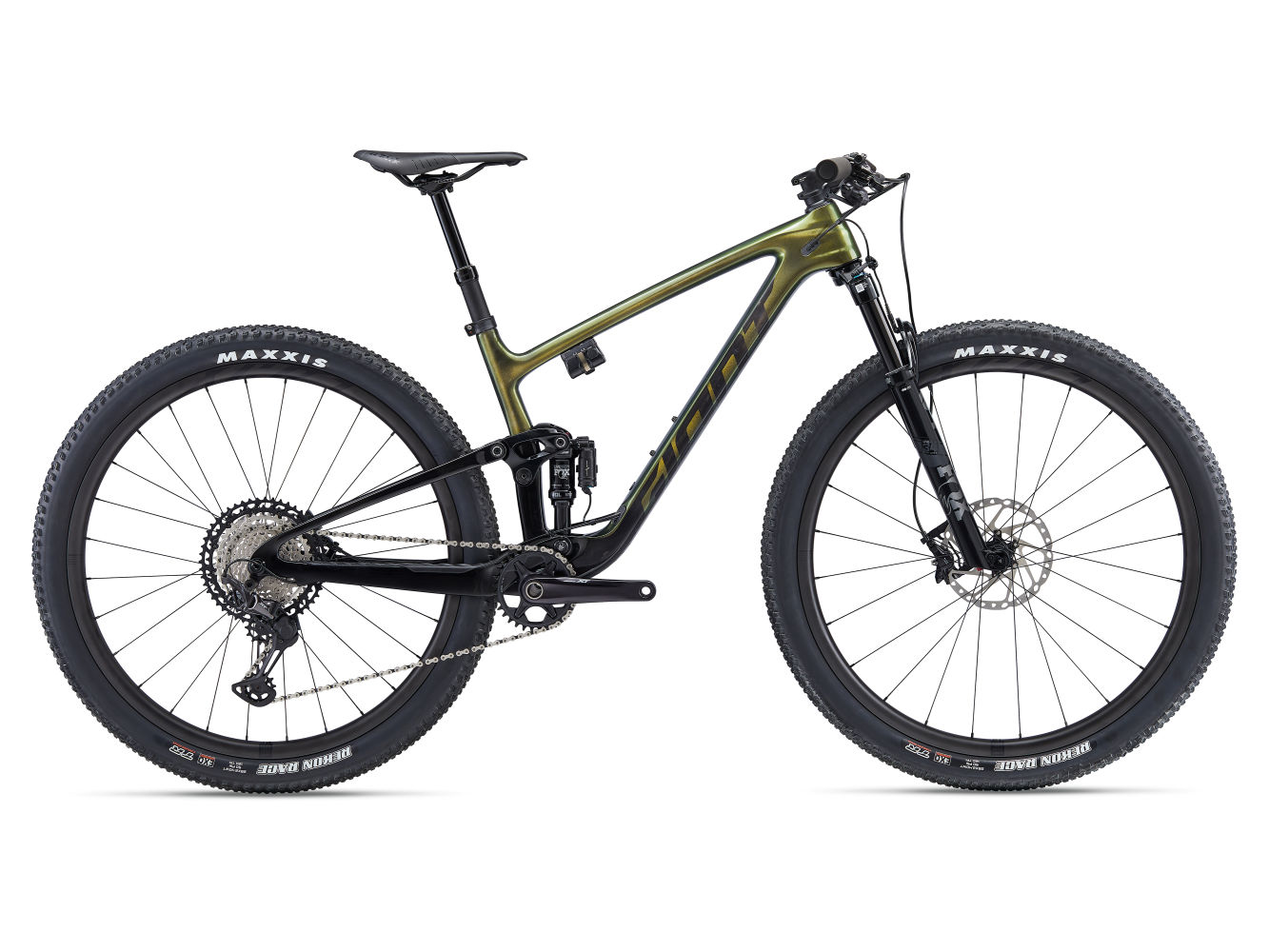

THIS PRO-LEVEL XC FLYER PAIRS NEW FLEXPOINT PRO REAR SUSPENSION WITH A SUPERLIGHT FULL COMPOSITE FRAME AND RACE-READY GEOMETRY. IT’S THE ULTIMATE WEAPON FOR TECHNICAL CROSS-COUNTRY TERRAIN.
KEY PERFORMANCE FACTORS
Ultra-efficient
Next-generation Advanced composite mainframe and rear swingarm is 250g lighter than previous version. The bottom bracket area is stiffer for faster acceleration, and a steeper seattube puts the rider in an efficient, front-forward climbing position.
Superior control

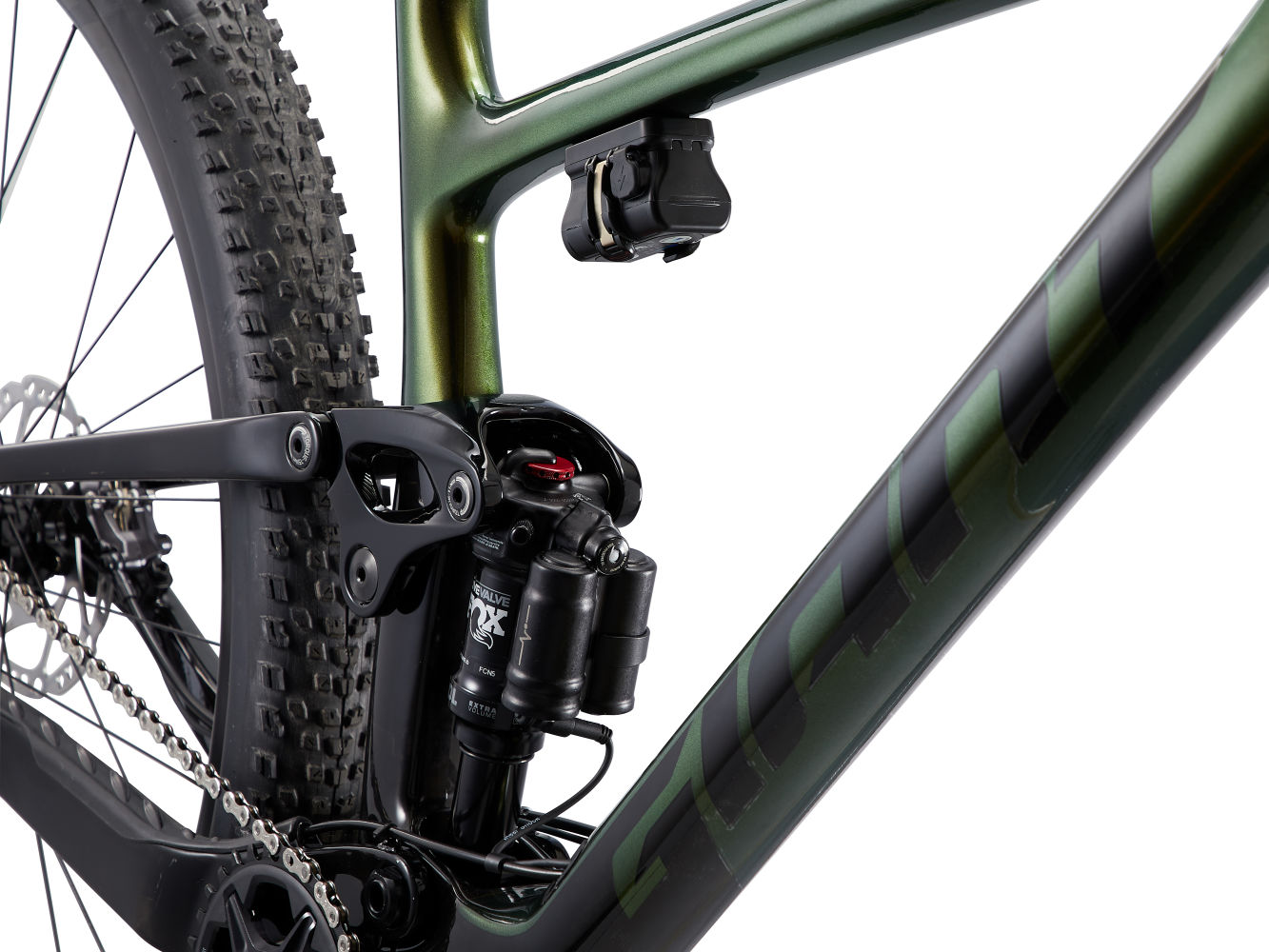

All-new FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The reengineered frameset features modern XC geometry including a slacker 67.5-degree headtube and 110mm suspension fork for technical descents.
29er stability and speed
Frame geometry and suspension are optimized for larger-diameter 29-inch wheels. A longer reach and updated cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 15.4 | 16.5 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 75.5° | 75.5° | 75.5° | 75.5° |
| C | TOP TUBE LENGTH (inch) | 22.5 | 23.8 | 24.6 | 25.7 |
| D | HEAD TUBE LENGTH (inch) | 3.5 | 3.7 | 4.1 | 4.5 |
| E | HEAD TUBE ANGLE | 67.5° | 67.5° | 67.5° | 67.5° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.3 | 4.3 | 4.3 | 4.3 |
| H | WHEELBASE (inch) | 44.4 | 45.6 | 46.6 | 47.7 |
| I | CHAIN STAY LENGTH (inch) | 17.1 | 17.1 | 17.1 | 17.1 |
| J | BOTTOM BRACKET DROP (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| K | STACK (inch) | 23.2 | 23.3 | 23.7 | 24.1 |
| L | REACH (inch) | 16.5 | 17.7 | 18.5 | 19.5 |
| M | STAND OVER HEIGHT (inch) | 29.3 | 29.5 | 30.6 | 31.5 |
| N | HANDLEBAR WIDTH (inch) | 29.9 | 29.9 | 29.9 | 29.9 |
| O | STEM LENGTH (inch) | 2.4 | 2.8 | 2.8 | 2.8 |
| P | CRANK LENGTH (inch) | 6.7 | 6.9 | 6.9 | 6.9 |
| Q | WHEEL SIZE | 29″ | 29″ | 29″ | 29″ |
